First 5 minutes

Your first 5 minutes with Causal Map


Let’s have a look around the Causal Map app.

Quick tour of the app

Video preview
The app has two parts, the left-hand side and the right-hand side as well as the top menu. Watch the video above to see how these parts work.
Whenever you use the app, you are always working with exactly one file, the “current file”.
The top menu contains tools for managing the current file, for instance to restore earlier versions of the file.

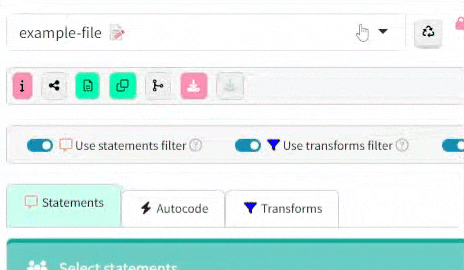

Most importantly, the top menu contains the “file dropdown menu” shown here. You use it to select what file you want to view or code.

notion image


Coding a file

If you want to practice coding, you will mostly use the left-hand side of the app. You usually start off with an uncoded example file which the app creates for you. You can find it in the dropdown menu, it has a name like example-file-uncoded-youremailaddress.


Viewing and analysing a file

Analysing a file means
  • applying different filters to it, to focus on different parts of the entire causal map in order to answer different questions
  • viewing the results in different ways by clicking on different tabs in the right hand side to view different kinds of graphical map and various tables.
If you want to view / analyse a file, you will mostly:


The Filters

Applying Filters

notion image

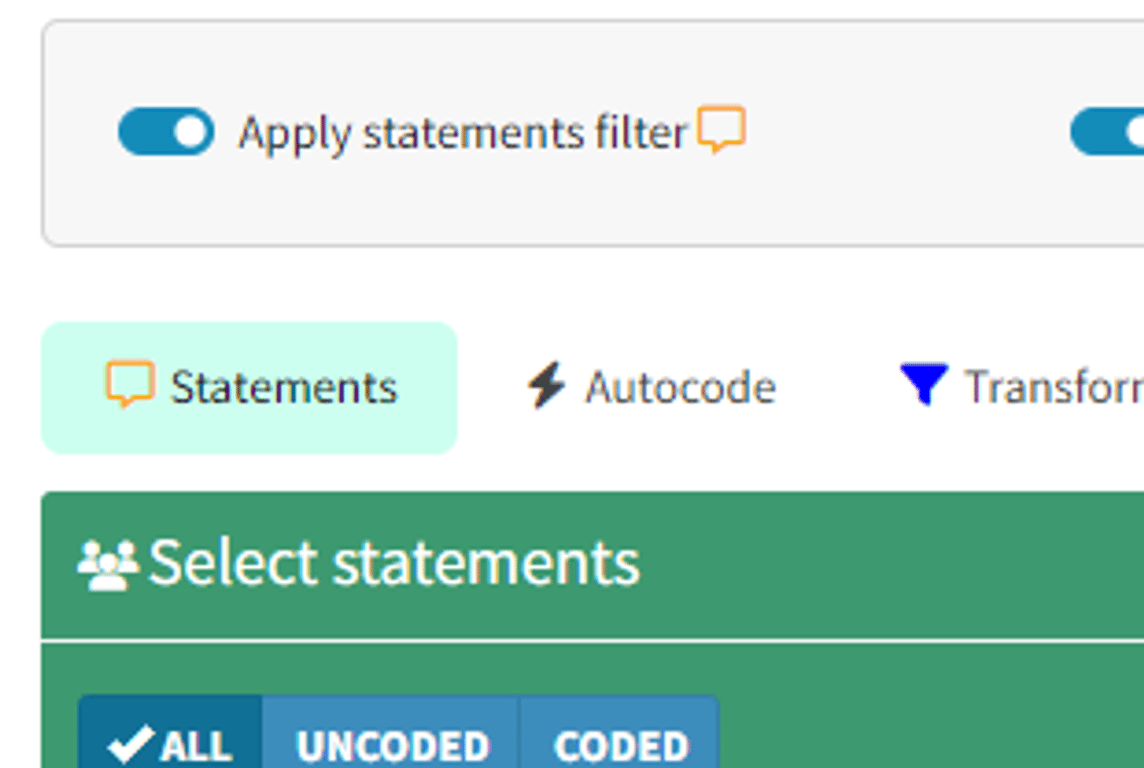

Use these filters to initially select what statements you want to view or code.
To switch these filters off, deselect “Apply statements filter”. This means all the filters are bypassed and ALL the statements (and all the links and all the sources) are available for the next step of the analysis.

The Library

⚒️ The Library allows you to save and share views of your data. Some functions are still buggy.

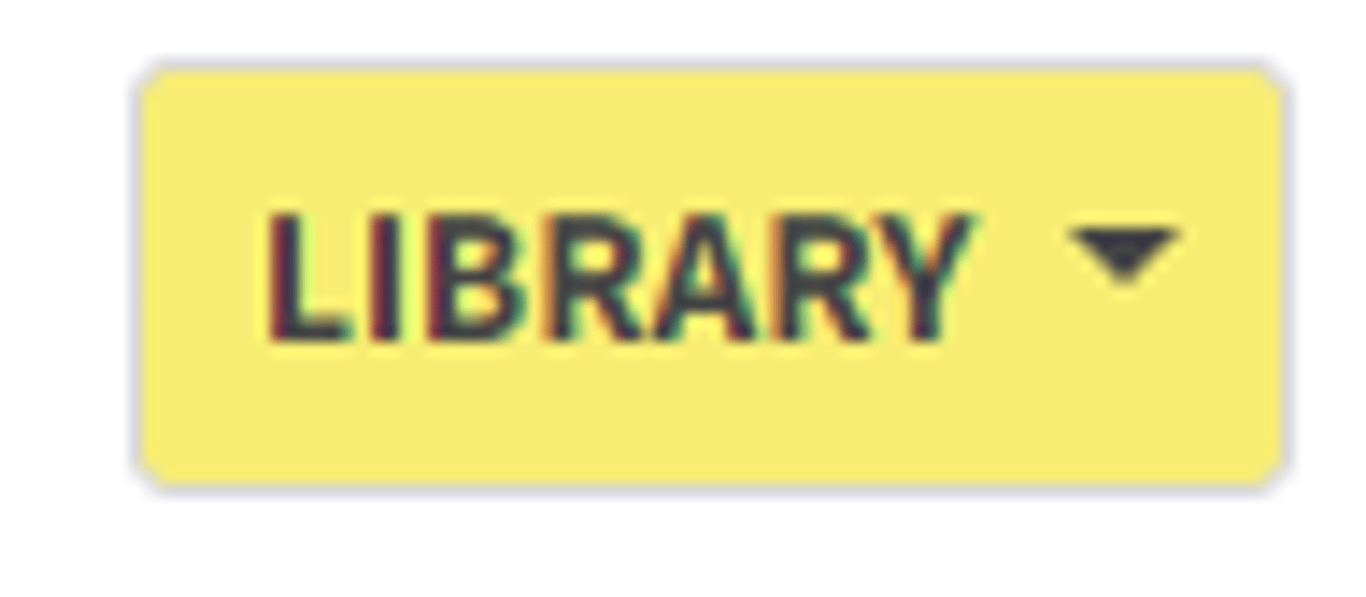

The Library (aka the Dashboard) appears on the right as the app loads, or reveal it by pressing the yellow button at top-right:
notion image

notion image

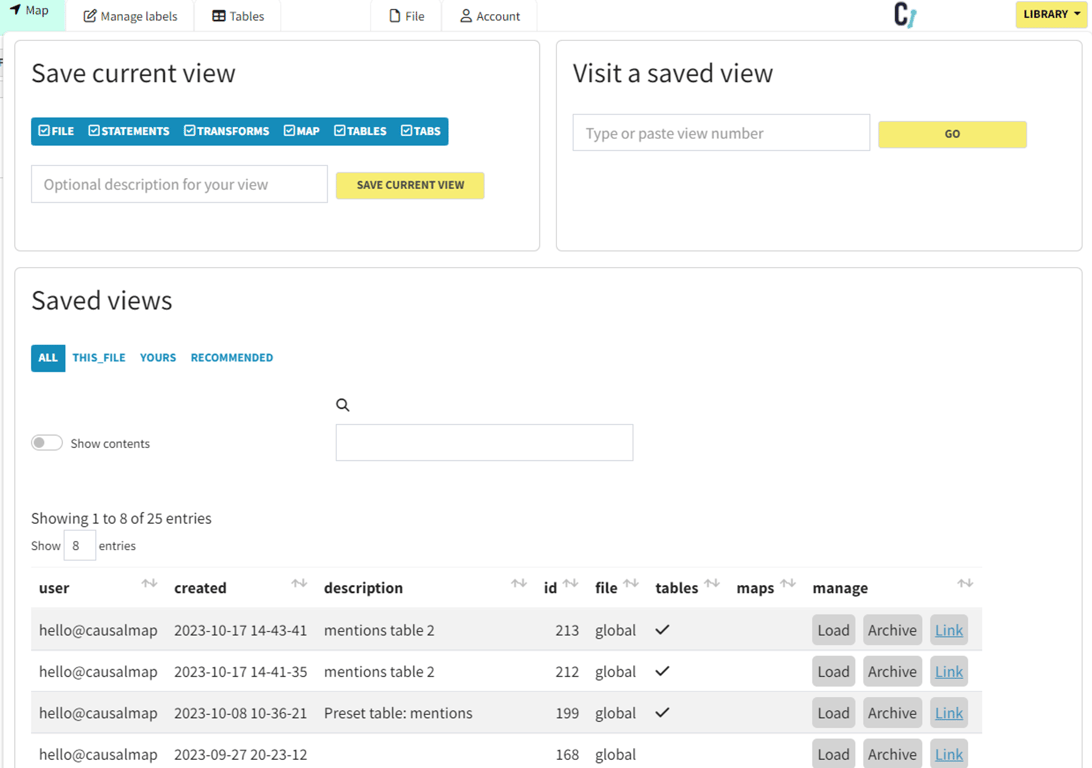

Each item in the ‘Saved views’ part of the library is a different view of a map.
You can change the tab to see only views of the current file saved by you or other users. You can apply a view by clicking on ‘Load’.

The other tabs

There are other tabs on the right hand side. Apart from the map and the tables, you won’t need these when you are just getting started.
